pisn

This example shows the effect of the pisn on the remnant masses for stars with large CO cores.

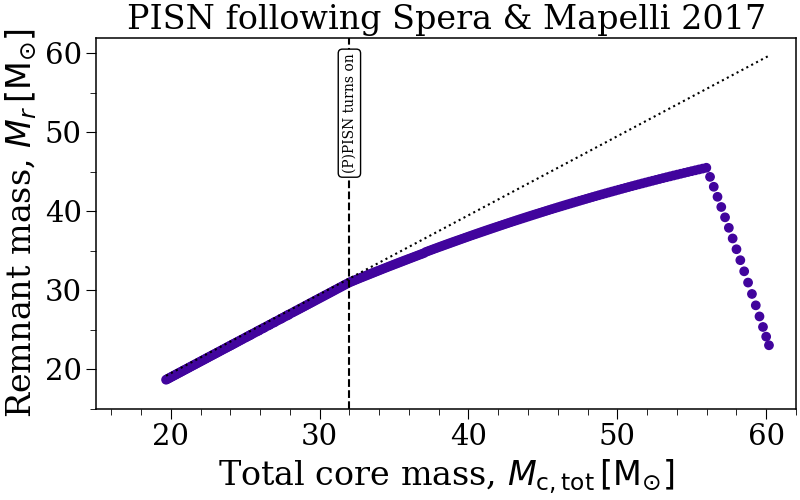

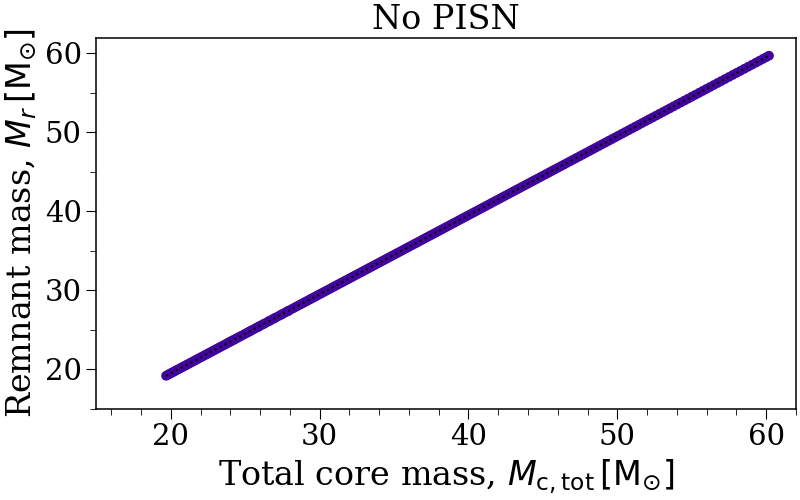

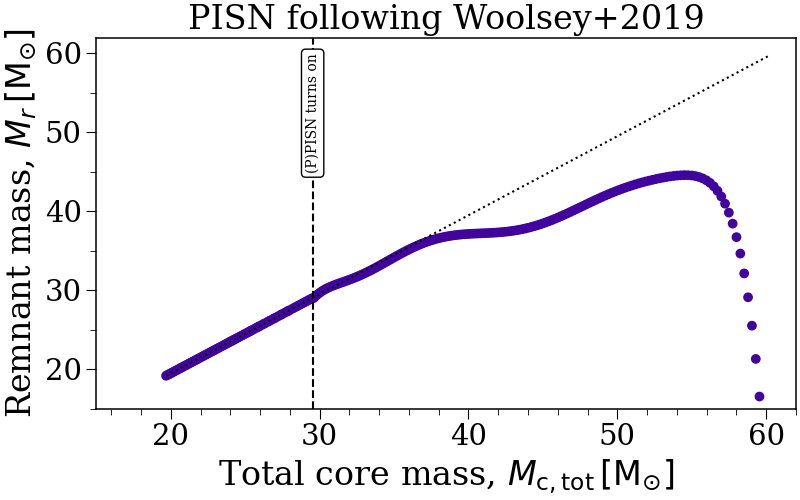

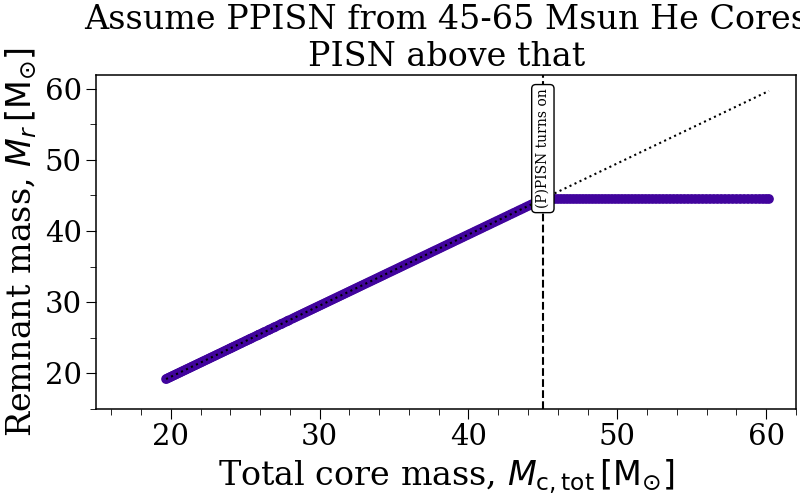

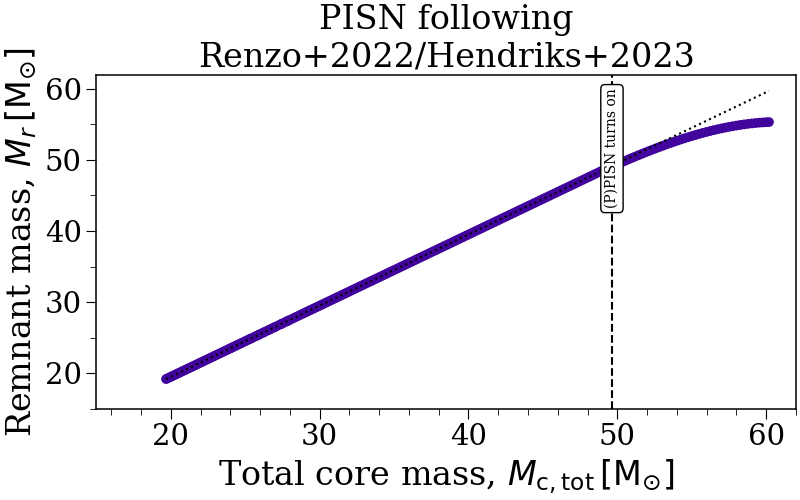

The pisn controls which prescription to use for pair-instability supernovae (PISN) for stars that are above a certain CO core mass. The plots below show the remnant masses for a grid of single stars with different choices of the pisn flag at a metallicity of \(Z = 0.01 Z_{\odot}\).

•
•
•
•
•
•

#----------------------------------------------------------------------------------
#----------------------------------------------------------------------------------
## You'll want to edit this part locally to use your own BSEDict and style sheet!

import sys
sys.path.append("..")
import generate_default_bsedict
BSEDict = generate_default_bsedict.get_default_BSE_settings(to_python=True)

import matplotlib.pyplot as plt
plt.style.use("../_static/gallery.mplstyle")
#----------------------------------------------------------------------------------
#----------------------------------------------------------------------------------

import numpy as np
import astropy.units as u
import astropy.constants as consts

from cosmic.sample import InitialBinaryTable
from cosmic.evolve import Evolve
from cosmic.output import kstar_translator


pisn_flags = [0, -1, -2, -3, -4, 45]
labels = ["No PISN", "PISN following Spera & Mapelli 2017", "PISN following Marchant+2018",
          "PISN following Woolsey+2019", "PISN following\nRenzo+2022/Hendriks+2023",
          "Assume PPISN from 45-65 Msun He Cores\nPISN above that"]

bpps = {}
initCs = {}

for pisn_flag, label in zip(pisn_flags, labels):
    n_grid = 250

    binary_grid = InitialBinaryTable.InitialBinaries(m1=np.geomspace(50, 150, n_grid),
                                                    m2=np.zeros(n_grid),
                                                    porb=np.ones(n_grid)*-1.0,
                                                    ecc=np.ones(n_grid)*0.0,
                                                    tphysf=np.ones(n_grid)*13700.0,
                                                    kstar1=np.ones(n_grid),
                                                    kstar2=np.ones(n_grid),
                                                    metallicity=np.ones(n_grid)*0.014*0.01)


    BSEDict['pisn'] = pisn_flag
    bpp, _, initC, _ = Evolve.evolve(
        initialbinarytable=binary_grid, BSEDict=BSEDict,
        bpp_columns=['tphys', 'mass_1', 'kstar_1', 'massc_co_layer_1',
                        'massc_he_layer_1', 'evol_type', "SN_1", "kstar_2"],
        nproc=16
    )
    final_bpp = bpp.drop_duplicates(subset="bin_num", keep="last")

    fig, ax = plt.subplots(figsize=(8, 5), constrained_layout=True)

    sn_rows = bpp[bpp["evol_type"] == 15]
    co_core_mass = sn_rows["massc_co_layer_1"].values
    total_core_mass = co_core_mass + sn_rows["massc_he_layer_1"].values
    remnant_mass = final_bpp["mass_1"].values
    kstars = sn_rows["kstar_1"].values

    ax.scatter(total_core_mass, remnant_mass, c=[kstar_translator[k]["colour"] for k in kstars])
    ax.plot(total_core_mass, total_core_mass - 0.5, color='k', ls=':')

    ax.set(
        xlabel=r"Total core mass, $M_{\rm c, tot} \, [\rm M_{\odot}]$",
        ylabel=r"Remnant mass, $M_r \, [\rm M_{\odot}]$",
        xlim=(15, 62),
        ylim=(15, 62),
        title=label
    )

    ax.yaxis.set_major_locator(plt.MultipleLocator(10))
    ax.yaxis.set_minor_locator(plt.MultipleLocator(5))

    ax.xaxis.set_major_locator(plt.MultipleLocator(10))
    ax.xaxis.set_minor_locator(plt.MultipleLocator(2))

    if pisn_flag == 0:
        pisn_turn_on = -100
    elif pisn_flag == -1:
        pisn_turn_on = 32
    elif pisn_flag == -2:
        pisn_turn_on = 32
    elif pisn_flag == -3:
        pisn_turn_on = 29.53
    elif pisn_flag == -4:
        idx = np.argmin(np.abs(co_core_mass - 38))
        pisn_turn_on = total_core_mass[idx]
    else:
        pisn_turn_on = pisn_flag

    ax.axvline(pisn_turn_on, color='k', ls='--')
    ax.annotate("(P)PISN turns on", xy=(pisn_turn_on, ax.get_ylim()[-1] - 2), rotation=90,
                fontsize=10, bbox=dict(boxstyle="round", fc="w"), ha='center', va='top')

    plt.show()
